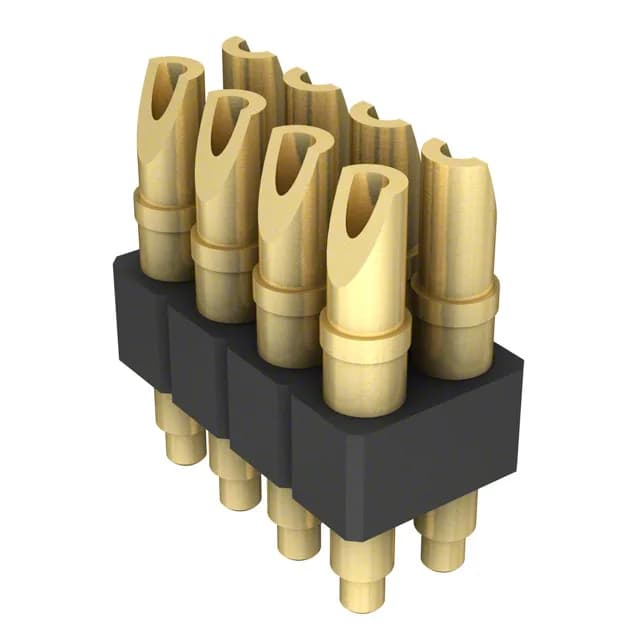

Mill-Max 826 series spring-loaded piston connector, order code 826-22-008-00-001000, 8 contacts, dual row, 0.100" (2.54 mm) pitch, gold-plated beryllium copper contacts, 20.0 µin gold finish, through-hole solder cup termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | 826 |
| Mounting | Through Hole, Solder Cup |
| Connector type | Piston |
| Positions | 8 |
| Material | Beryllium Copper |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold |
| Rows | 2 |
| Contact finish thickness | 20.0µin (0.51µm) |
The 826-22-008-00-001000 is the 8-contact member of Mill-Max's 826 series spring-loaded piston connector line, arranged in a dual-row format at 0.100" (2.54 mm) pitch. Contacts are machined from beryllium copper with a 20.0 µin gold finish, terminated via through-hole solder cup for field wiring or board mounting.
The 826-22-008-00-001000 is ROHS3 compliant as listed in the manufacturer's lifecycle data.
