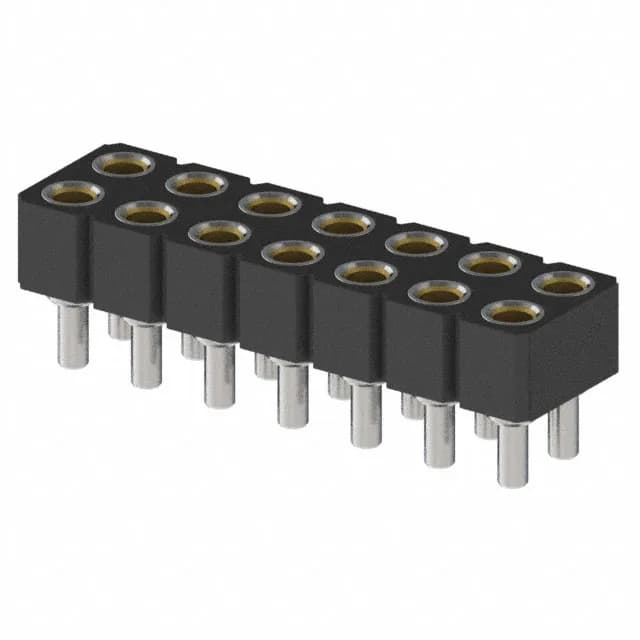

Mill-Max Manufacturing Corp. 835-47-014-10-001000
MPN835-47-014-10-001000
Active
CONN RCPT 14POS 0.1 GOLD PCB
$3.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series835
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 835 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Pass Through |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.080\" (2.03mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
