Mill-Max Manufacturing Corp. 850-10-010-10-003000
MPN850-10-010-10-003000
Active

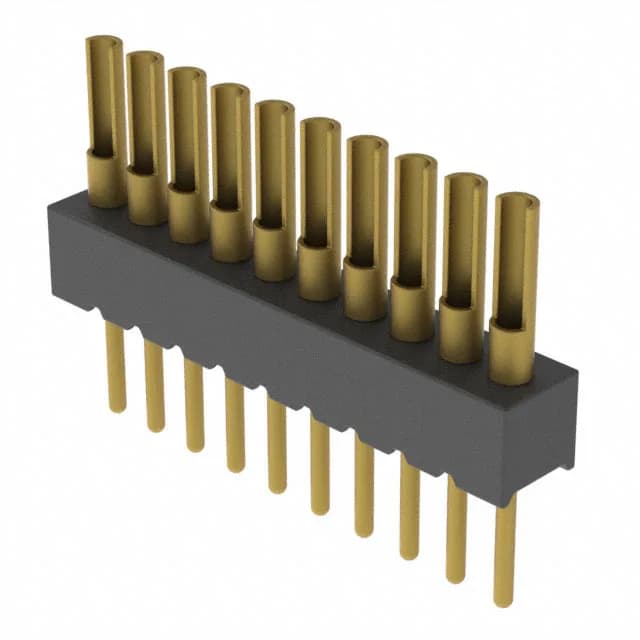

CONN HEADER VERT 10POS 1.27MM
$6.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series850
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 850 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact length - post | 0.122\" (3.10mm) |
| Overall contact length | 0.303\" (7.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.100\" (2.54mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
