Mill-Max Manufacturing Corp. 9016-0-15-01-07-01-10-0 — PCB Pin Sockets

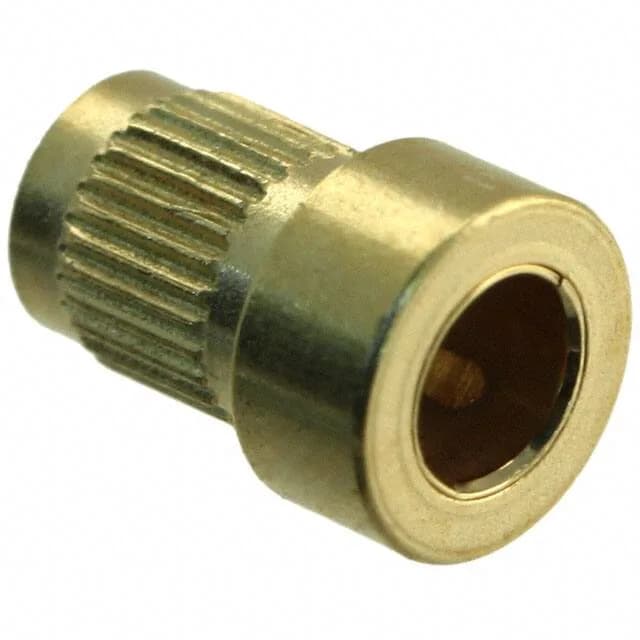

Mill-Max Manufacturing Corp. 9016-0-15-01-07-01-10-0

MPN9016-0-15-01-07-01-10-0
Active

CONN RECEPT PIN .065-.082" .240"

$1.6400Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series9016
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

9016-0-15-01-07-01-10-0 specifications
ParameterValue
Series9016
Tail typeNo Tail
Mounting hole diameter0.131\" (3.33mm)
Operating temperature-55°C ~ 125°C
Socket depth0.240\" (6.10mm)
Contact materialBeryllium Copper
PackageBulk
TerminationPress-Fit
Contact finishTin-Lead
Flange diameter0.172\" (4.37mm)
Length - overall0.240\" (6.10mm)
Pin hole diameter0.107\" (2.72mm)
Accepts pin diameter0.065\" ~ 0.082\" (1.65mm ~ 2.08mm)
Contact finish thickness200.0µin (5.08µm)
