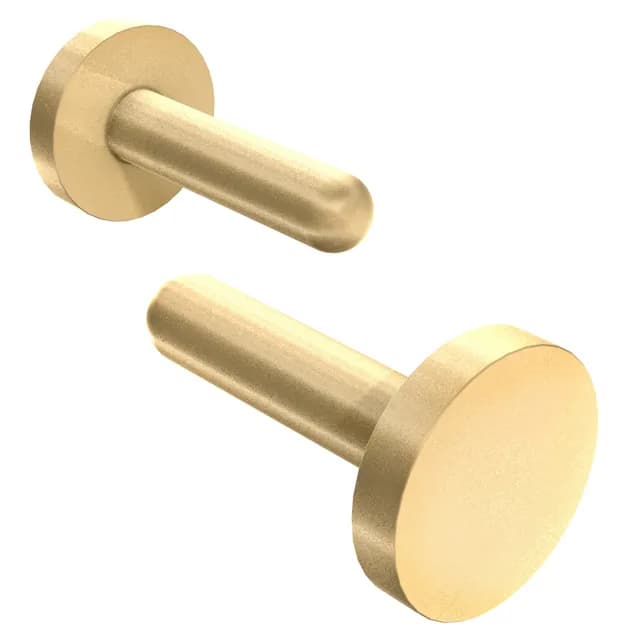

Mill-Max Manufacturing Corp. 9137-0-00-15-00-00-38-0
MPN9137-0-00-15-00-00-38-0
Active
CONN PC PIN CIRC 0.018DIA GOLD
$0.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series9137
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 9137 |
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Mounting hole diameter | 0.022\" (0.56mm) |
| Terminal style | Single End, Nail Head |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.050\" (1.27mm) |
| Length - overall | 0.180\" (4.57mm) |
| Length - above flange | 0.160\" (4.06mm) |
| Pin size - above flange | 0.018\" (0.46mm) Dia |
| Contact finish thickness | 10.0µin (0.25µm) |
