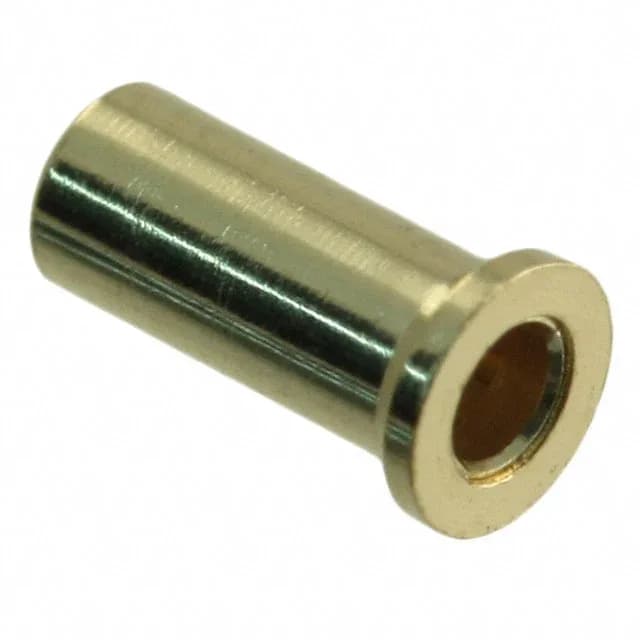

Mill-Max Manufacturing Corp. 9354-0-15-01-18-01-10-0
MPN9354-0-15-01-18-01-10-0
Active
CONN PIN RCPT .037-.043 SOLDER
$1.2400Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series9354
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 9354 |
| Tail type | No Tail |
| Mounting hole diameter | 0.071\" (1.80mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.170\" (4.32mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Tin-Lead |
| Flange diameter | 0.091\" (2.31mm) |
| Length - overall | 0.170\" (4.32mm) |
| Pin hole diameter | 0.054\" (1.37mm) |
| Accepts pin diameter | 0.037\" ~ 0.043\" (0.94mm ~ 1.09mm) |
| Contact finish thickness | 200.0µin (5.08µm) |
