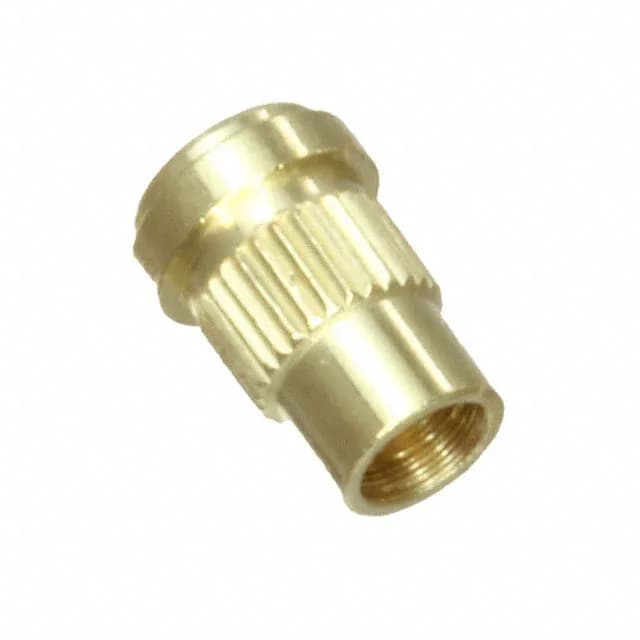

Mill-Max Manufacturing Corp. 9359-0-15-15-34-27-10-0
MPN9359-0-15-15-34-27-10-0
Active
CONN PIN RCPT .032-.046 KNURL
$1.1300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 9359 |
| Tail type | No Tail |
| Mounting hole diameter | 0.090\" (2.29mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.160\" (4.06mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit, Knurled |
| Contact finish | Gold |
| Flange diameter | 0.110\" (2.79mm) |
| Length - overall | 0.160\" (4.06mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
Sourcing this connector
Mill-Max Manufacturing Corp. 9359-0-15-15-34-27-10-0 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Mill-Max Manufacturing Corp. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
