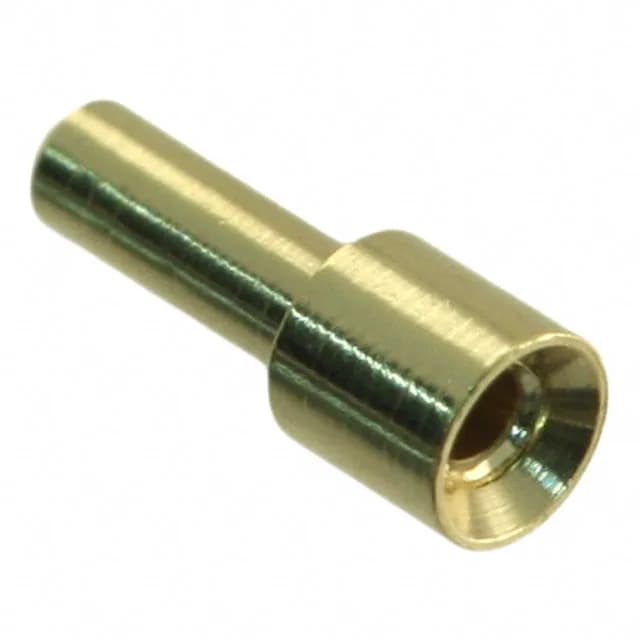

Mill-Max Manufacturing Corp. 9548-0-15-15-21-27-10-0
MPN9548-0-15-15-21-27-10-0
Active
CONN PIN RCPT .015-.022 SOLDER
$0.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series9548
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 9548 |
| Tail type | No Tail |
| Mounting hole diameter | 0.036\" (0.91mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.138\" (3.51mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.058\" (1.47mm) |
| Length - overall | 0.155\" (3.94mm) |
| Pin hole diameter | 0.031\" (0.79mm) |
| Accepts pin diameter | 0.015\" ~ 0.022\" (0.38mm ~ 0.56mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
