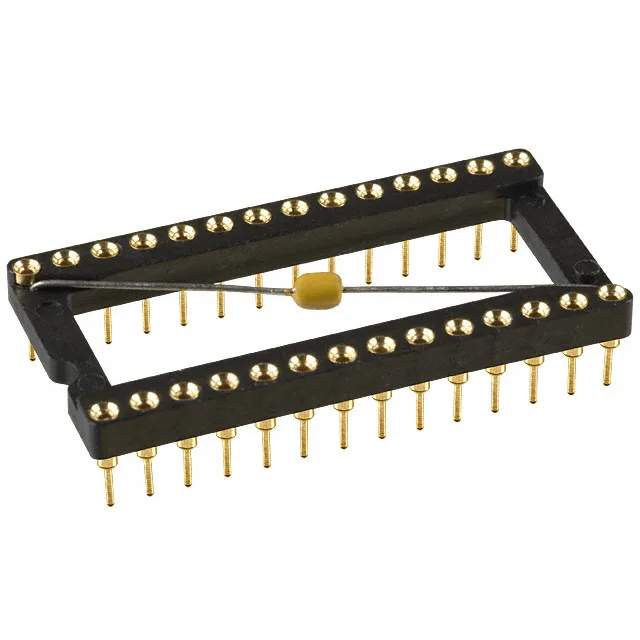

110-13-628-41-801000
Mill-Max Manufacturing Corp.
Open Frame, Decoupling CapacitorDIP, 0.6\" (15.24mm) Row Spacing110
Ref. price$9.1600
Lead time on requestGet quote ›
Mill-Max Manufacturing Corp. 1101 Series
5 variants · Mill-Max Manufacturing Corp.
About the Mill-Max Manufacturing Corp. 1101 Series
The Mill-Max Manufacturing Corp. 1101 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Gold, contact finish - post of Gold and contact finish thickness - mating of 30.0µin (0.76µm). Variants differ by features, number of positions or pins and type, so you can match the exact features your application requires using the selection guide below. All listed Mill-Max Manufacturing Corp. 1101 Series part numbers are active and orderable.
Select a variant by
- Features
- Open Frame · Open Frame, Decoupling Capacitor
- Number of positions or pins
- 16 (2 x 8) · 20 (2 x 10) · 28 (2 x 14) · 32 (2 x 16)
- Type
- DIP, 0.3\" (7.62mm) Row Spacing · DIP, 0.6\" (15.24mm) Row Spacing
Shared specifications
- Contact finish - mating
- Gold
- Contact finish - post
- Gold
- Contact finish thickness - mating
- 30.0µin (0.76µm)
- Contact finish thickness - post
- 10.0µin (0.25µm)
- Contact material - mating
- Beryllium Copper
- Contact material - post
- Brass Alloy
- Contact resistance
- -
- Current rating
- 3 A
- Housing material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
- Material flammability rating
- -
- Mounting type
- Through Hole
- Operating temperature
- -55°C ~ 125°C
Variant comparison
| Parameter | 110-13-628-41-801000 | 110-13-328-41-001000 | 110-13-316-41-001000 | 110-13-320-41-001000 | 110-13-632-41-001000 |
|---|---|---|---|---|---|
| Features | Open Frame, Decoupling Capacitor | Open Frame | Open Frame | Open Frame | Open Frame |
| Number of positions or pins | 28 (2 x 14) | 28 (2 x 14) | 16 (2 x 8) | 20 (2 x 10) | 32 (2 x 16) |
| Type | DIP, 0.6\" (15.24mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.6\" (15.24mm) Row Spacing |
Request a quote on any Mill-Max Manufacturing Corp. 1101 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Mill-Max Manufacturing Corp. 1101 Series variants differ?
- Mill-Max Manufacturing Corp. 1101 Series part numbers differ by features, number of positions or pins and type. Use the selection guide above to pick by features.
- How many Mill-Max Manufacturing Corp. 1101 Series part numbers are listed?
- 5 Mill-Max Manufacturing Corp. 1101 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Mill-Max Manufacturing Corp. 1101 Series?
- Request a quote (RFQ) for any Mill-Max Manufacturing Corp. 1101 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
