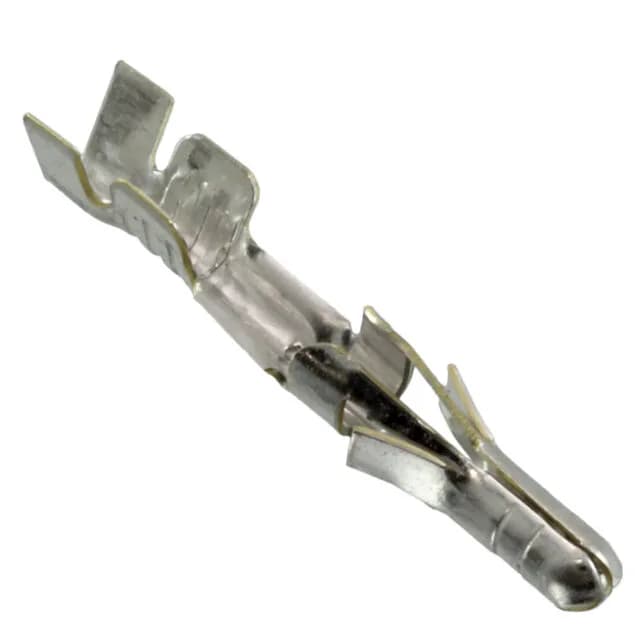

Molex 1380 series Power, Stamped pin contact, 0002092116, 18-22 AWG, Tin 20.0µin (0.51µm) finish, Crimp termination, Brass, Tape & Reel.
| Parameter | Value |
|---|---|
| Type | Power, Stamped |
| Series | 1380 |
| Wire gauge | 18-22 AWG |
| Contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Manufacturer | Molex |
| Pin or socket | Pin |
| Contact finish | Tin |
| Contact termination | Crimp |
| Contact finish thickness | 20.0µin (0.51µm) |
The brass body carries a tin plating at 20.0µin (0.51µm) — a standard finish for cost-sensitive, moderate-environment applications where repeated mating cycles are not the primary concern.
The 0002092116 pin crimps into the corresponding 1380 series receptacle housing. The housing is the key selection — it determines the circuit count, keying, and locking features for the assembly. Confirm the mating half part number against your BOM before committing the wire harness layout.
Molex 0002092116 is an active-production part sourced to order against an RFQ. Availability and current pricing are confirmed at quote time through independent distribution.
The evidence does not list a specific current rating for this contact. The rating depends on the housing, wire gauge, and ambient temperature in the final assembly.
The evidence does not explicitly state RoHS compliance for this part number. Verify with the manufacturer's documentation or your compliance team before specifying.
