It uses a 0.156 inch (3.96 mm) pitch — the same footprint as the classic KK.156 family — and terminates through right-angle solder tails that sit flush against the board edge. The tin-plated square female socket contacts are rated 5 A per circuit at 600 V, with 60.0 µin (1.52 µm) of tin on both the mating and post surfaces.
Where it fits and what it drives
Board hooks add mechanical retention during wave soldering and resist the shear force from cable strain after the connector is mated.
The locking ramp and board hooks add vibration resistance for field-mateable assemblies in moderate-shock environments.
This receptacle mates with the matching KK396 series pin header (male) at the same 0.156 inch (3.96 mm) pitch. The female socket accepts square header pins of the same series.

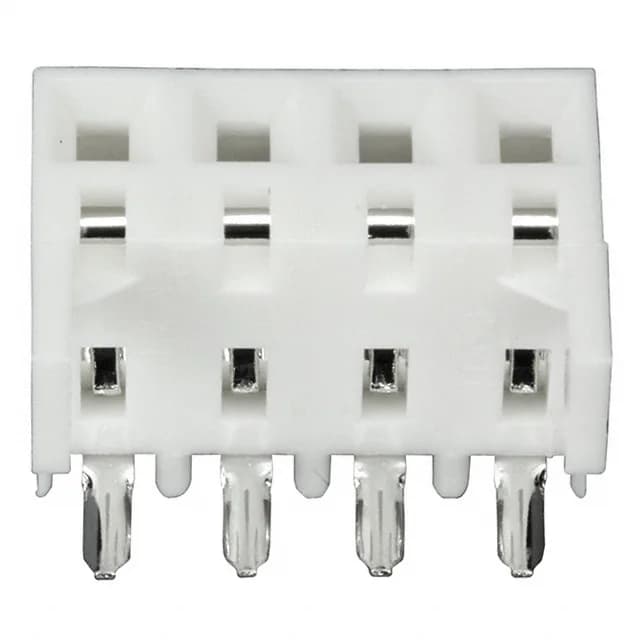

The base product number 000948 covers the KK396 receptacle family; the full 0009481044 specifies the 4-circuit, right-angle, tin-plated variant.
