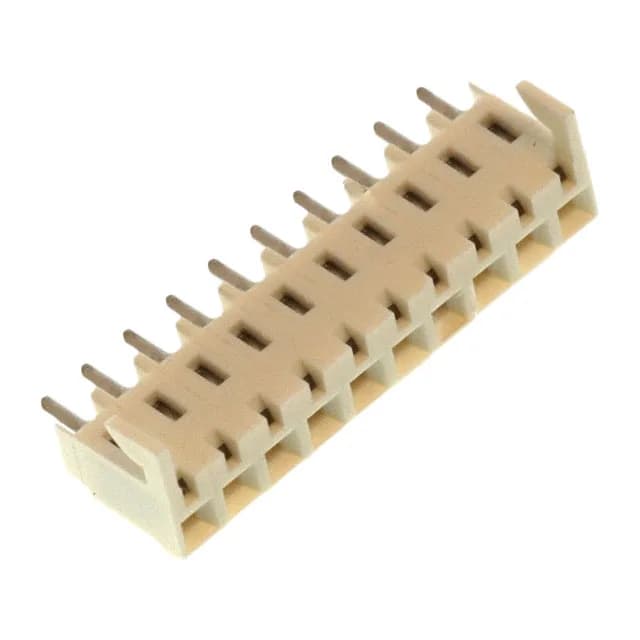

Molex KK396 41815 series receptacle, 0009482103, 10 positions, single row, 0.156" (3.96mm) pitch, through hole, solder termination, tin-plated contacts, locking ramp, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | KK396, 41815 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 4.5A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Board Hooks |
| Package | Tray |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Typical applications include automotive, general-purpose, medical, and telecommunications harness assemblies.
Rated at 4.5 A per circuit with a 600 V voltage rating, this receptacle carries tin-plated brass contacts — 100.0 µin (2.54 µm) of tin on both the mating surface and the solder post.
Contact the storefront with your BOM quantity for a current quote — pricing and availability are confirmed at quote time.
This receptacle mates with the matching KK396 series crimp-terminal header, typically a single-row, 0.156" (3.96 mm) pitch male header. The locking ramp engages with the header's latch for secure retention.
The tin-plated contacts and polyester housing are consistent with RoHS compliance, though the official compliance status should be confirmed from the manufacturer's documentation at the time of ordering.
