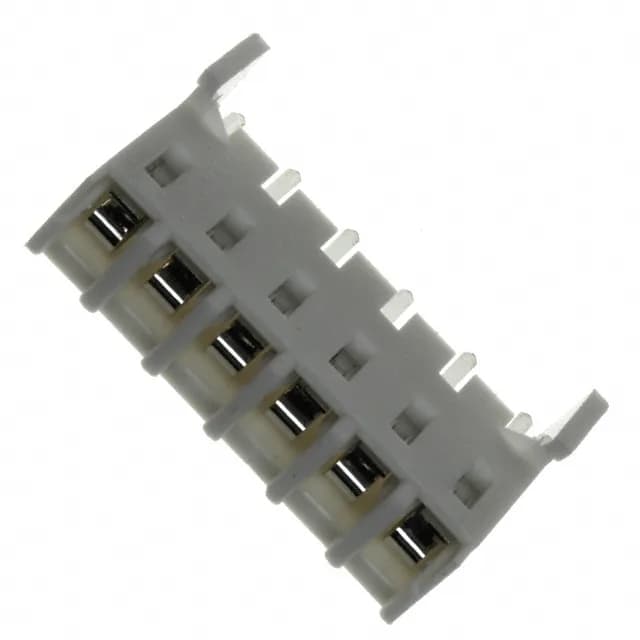

The Molex 0009484069 is a 6-circuit single-row receptacle from the KK396 series (41815 family), built for board-to-board or cable-to-board interconnects on a 0.156" (3.96mm) pitch. It is a through-hole bottom-entry design — the contacts load from the underside of the PCB, which keeps the wire dressing on the component side and frees up the opposite face for other components. Tin-plated phosphor bronze contacts, rated 4.5 A per circuit at 600 V, with the same 60.0µin (1.52µm) tin thickness on both the mating and post surfaces — adequate for occasional mating cycles in a permanent or semi-permanent install.
Locking ramp and board hooks
For a bottom-entry part that sees harness dress on the solder side, these hooks prevent the connector from lifting off the board when the cable is tugged.
Applications and environment
The KK396 series carries a broad qualification scope — Automotive, General Purpose, Medical, Telecommunications — which means the 0009484069 has been validated across temperature cycling, humidity, and vibration profiles typical of those sectors. The 600 V rating covers mains-level isolation in power supplies and telecom rectifiers.
