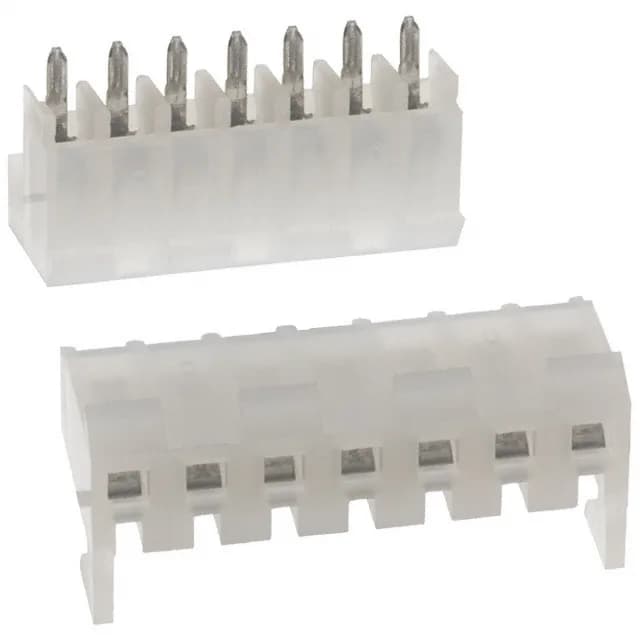

Molex KK396, 2145 series receptacle, 0009523073, 7 positions, 1 row, 0.156" (3.96 mm) pitch, through-hole solder, tin-plated contacts, locking ramp, UL94 V-2, 4.5 A, 600 V.
| Parameter | Value |
|---|---|
| Series | KK396, 2145 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 4.5A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Features | Board Hooks |
| Package | Tray |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The Molex 0009523073 is a 7-circuit single-row receptacle from the KK396 and 2145 series, on a 0.156" (3.96 mm) pitch. Rated for 4.5 A per circuit at 600 V, it operates from -40°C to 80°C and is qualified for automotive, general-purpose, medical, and telecommunications applications.
The 0.156" (3.96 mm) pitch matches the Molex KK396 header family footprint. The 4.5 A per-circuit rating with tin-plated contacts is suitable for moderate power distribution or signal-level current.
Submit your BOM for a same-day quote.
The mating pitch is 0.156" (3.96 mm), standard for the KK396 series. Confirm your board layout and mating header match this spacing.
Yes — this receptacle is part of the KK396 and 2145 series. It mates with KK396 pin headers on the same 0.156" pitch and uses the standard KK396 crimp terminals.
