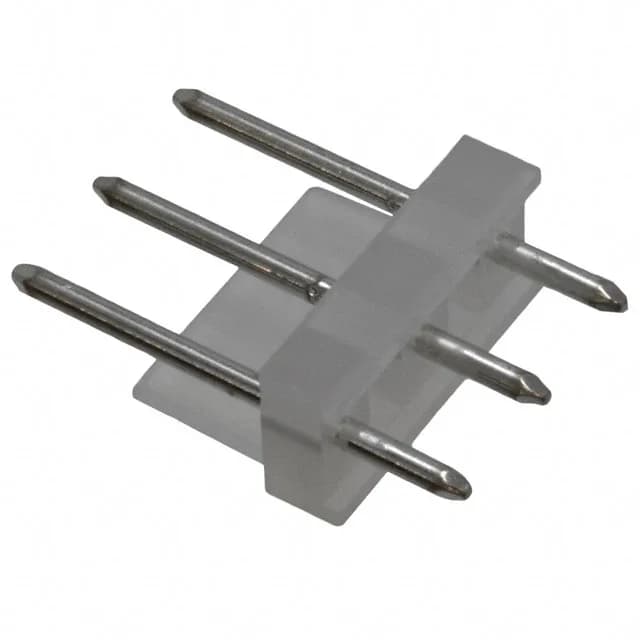

Molex KK508, 2599 header, order code 0010085031, 3 positions, single row, 0.200" (5.08 mm) pitch, tin-plated mating contacts, through-hole, solder termination.
Molex KK508 0010085031 Header, 3-Pos 5.08mm
MPN0010085031
Active
Molex KK508, 2599 header, order code 0010085031, 3 positions, single row, 0.200" (5.08 mm) pitch, tin-plated mating contacts, through-hole, solder termination.
$0.7900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK508, 2599 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.375\" (9.53mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does Molex provide for 0010085031?
The header carries a UL94 V-2 flammability rating. RoHS and REACH compliance documentation is available from Molex for the KK508 series.
