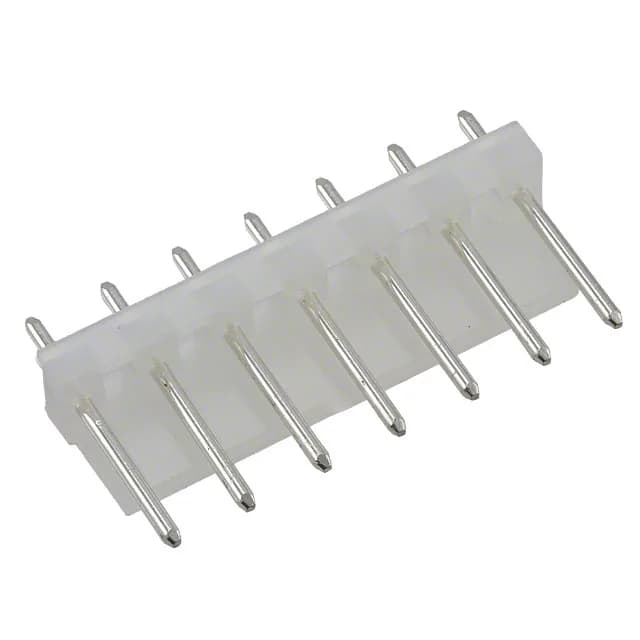

Molex 0010085071
MPN0010085071
Active
$1.2100Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK508, 2599 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.375\" (9.53mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
