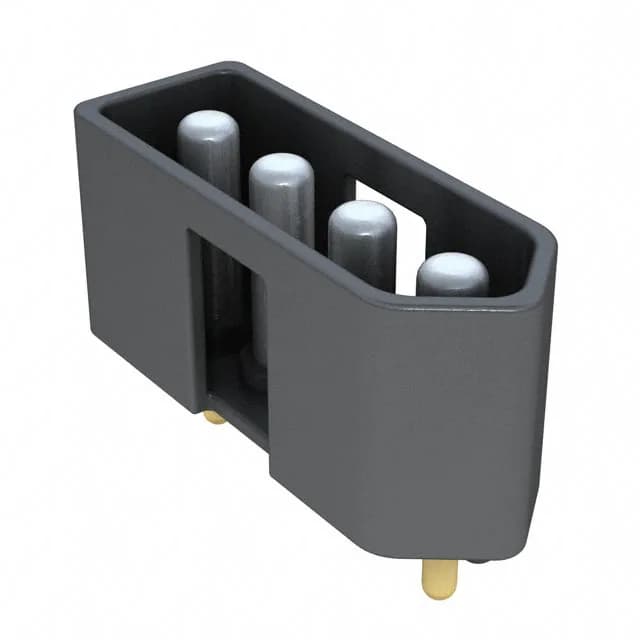

Molex 3099 series header, order code 0010181050, 4 positions, single row, 0.198" (5.03mm) pitch, through hole, tin-plated mating contacts, solder termination, shrouded 4-wall with latch lock.
| Parameter | Value |
|---|---|
| Series | 3099 |
| Type | Female Socket; Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Insulation color | Black |
| Insulation height | 0.421\" (10.70mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Board Guide |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.198\" (5.03mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.170\" (4.32mm) |
| Contact finish - mating | Tin |
The 0010181050: It carries tin-plated mating contacts on a 0.198" (5.03mm) pitch, mounts through hole with solder termination, and includes a 4-wall shroud with latch lock for secure mating. The polyester insulation is rated UL94 V-0, and the header includes a board guide for alignment during assembly.
The mating contacts are tin-plated, suitable for moderate-cycle applications.
