Board-to-board or cable header, 4 circuits
The 0010883041 is the 4-circuit member of the Molex C-Grid 70216 breakaway header line, a dual-row unshrouded header for board-to-board or cable connections.

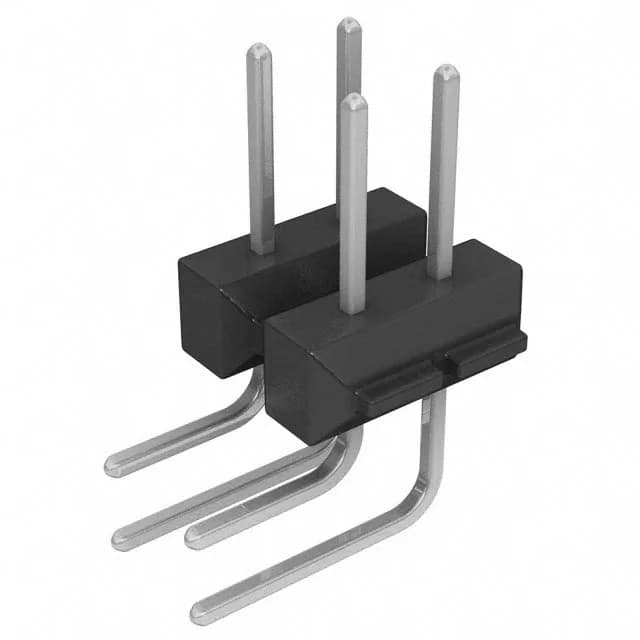

Molex 0010883041 C-Grid 70216 Header, 4-Pos 2.54mm
MPN0010883041
Active
Molex C-Grid 70216 header, order code 0010883041, 4 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole right-angle, solder termination, unshrouded, UL94 V-0.
$0.3859Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 70216 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
