Molex 0010897042

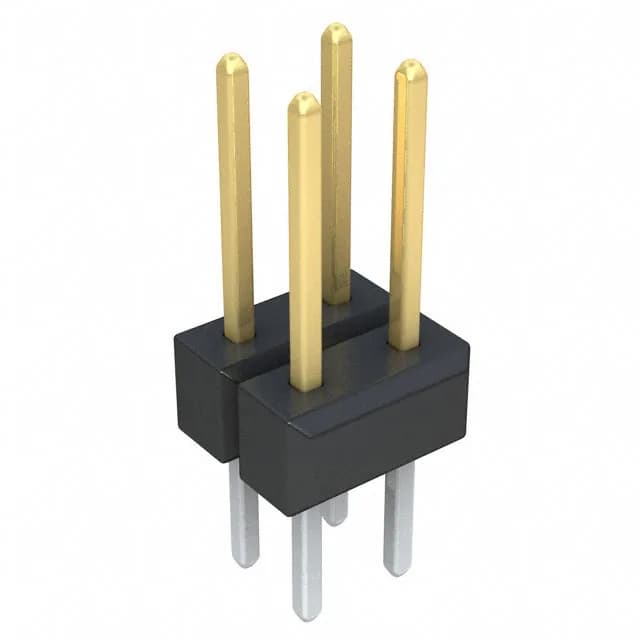

0010897042 Molex C-Grid 70280 Header 4 Pos 2.54mm

MPN 0010897042
Active

Molex C-Grid 70280 series, 0010897042, 4-position dual-row unshrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, black LCP housing, UL94 V-0.

$0.8900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesC-Grid 70280
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0010897042 key specifications
ParameterValue
SeriesC-Grid 70280
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0010897042 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.107\" (2.71mm)
Overall contact length0.437\" (11.10mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Contact Finish and Mating Duty

Housing Material and Environment

The black color is standard for the C-Grid 70280 series and helps visual inspection of the mated pair. For a locked mate, pair it with a shrouded header or add a secondary retention clip.

ROHS3 compliant, so it fits current environmental regulations for electronics sold into the EU and other regulated markets.
