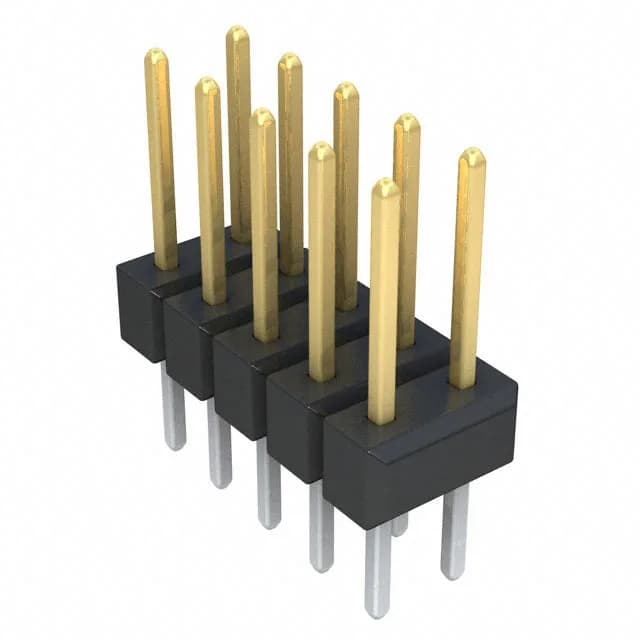

10-Pin Breakaway Header – 2.54mm Pitch, Gold Mating Surface
Unshrouded pins expose the full contact length for probing or wire-wrap, but also leave the pins vulnerable to bending during handling — the caps stay on till you mate.
Through-Hole Solder Termination – Board Mount and Housing
Insulation height is 0.090" (2.29mm) — a low profile that fits tight z-height budgets. The housing is black liquid crystal polymer (LCP), glass-filled, rated UL94 V-0.
This header mates with C-Grid 70280 series crimp receptacles (e.g., Molex 70066 series housings) and compatible IDC sockets. Typical uses include automotive, lighting, medical, and telecom boards where a reliable signal path at moderate current is needed. For a field-service swap, the breakaway header can be replaced pin-for-pin without board redesign — just confirm the mating half's pitch and row spacing match.
