Molex 0010897122 — Pin Headers

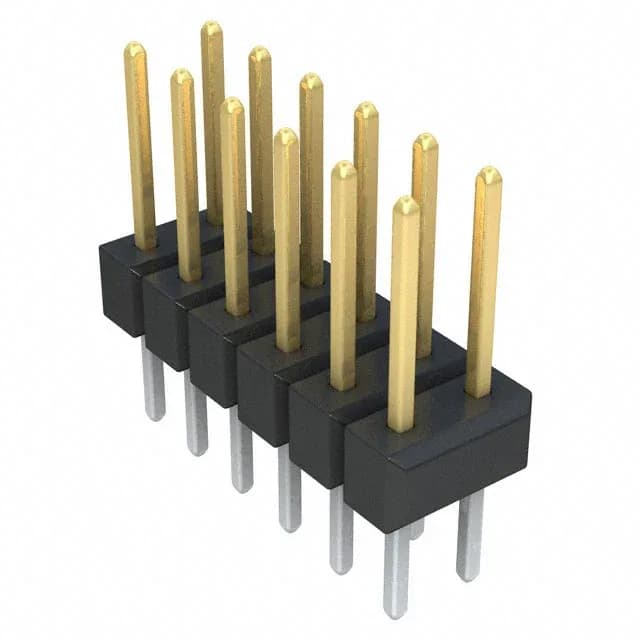

Molex 0010897122 C-Grid 70280 Breakaway Header, 12 Pos

MPN0010897122
Active

Molex C-Grid 70280 series, 0010897122 — unshrouded breakaway header, 12 circuits, dual-row, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, UL94 V-0 LCP housing.

$2.4900Ref. price · indicative, final on quote
Molex 0010897122 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid 70280
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0010897122 key specifications
ParameterValue
SeriesC-Grid 70280
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0010897122 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.107\" (2.71mm)
Overall contact length0.437\" (11.10mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

12-Pin Breakaway Header at 2.54 mm Pitch

The 0010897122 is a 12-position, dual-row unshrouded breakaway header from Molex's C-Grid 70280 series. It mates with C-Grid receptacle housings and IDC connectors for board-to-board or cable-to-board interconnects. Gold plating on the mating face (15 µinch minimum) gives this header a rated cycle life well beyond a tin-plated equivalent — in a test-fixture or field-service role where the connector sees dozens of mates, the gold interface resists fretting corrosion.

Availability and current pricing confirmed at RFQ.

Frequently asked questions

Is Molex 0010897122 shrouded?

No, the 0010897122 is an unshrouded breakaway header.

What is the pitch of Molex 0010897122?

The mating pitch is 0.100" (2.54 mm) between pins, with the same 0.100" spacing between rows.

Where can I buy Molex 0010897122?

Availability and current pricing confirmed at quote time.
