Molex 0010897161

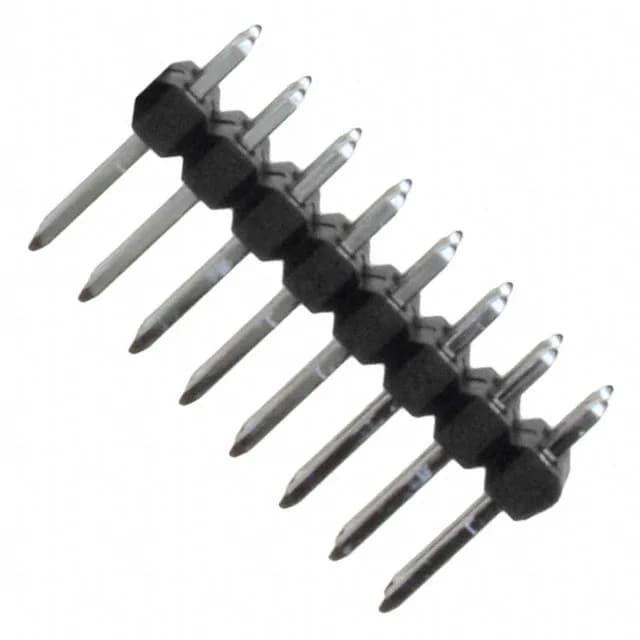

Molex 0010897161 C-Grid 70280 Header, 16-Pos, 2.54mm Pitch

MPN 0010897161
Active

Molex C-Grid 70280 series, 0010897161, 16-position unshrouded header, 2.54mm pitch, dual-row, through-hole, tin-plated contacts, UL94 V-0 LCP housing.

$1.7400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesC-Grid 70280
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0010897161 key specifications
ParameterValue
SeriesC-Grid 70280
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0010897161 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.107\" (2.71mm)
Overall contact length0.437\" (11.10mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

Board Layout Fit: Pitch, Rows, and Footprint

The 0010897161: With 16 positions loaded across two rows, the header occupies a 0.100" x 0.800" footprint plus the through-hole pads. This saves board space but requires the cable connector to be positively located during assembly. Through-hole termination with a 0.107" (2.71mm) post length gives a solid solder joint on standard 1.6mm PCBs.

Contact Interface and Plating Grade

Tin-plated mating contacts at 150.0µin (3.81µm) thickness — this is a heavy tin coating, good for moderate mating cycles (50-100) in dry indoor environments. Tin is cost-effective but does not match the corrosion resistance or cycle life of gold; if the application sees frequent connect/disconnect or a corrosive atmosphere, consider a gold-plated sibling. The copper alloy base material provides adequate spring force for the tin interface.

The glass-filled LCP material handles reflow temperatures without warping.
