Molex 0010897201 — Pin Headers

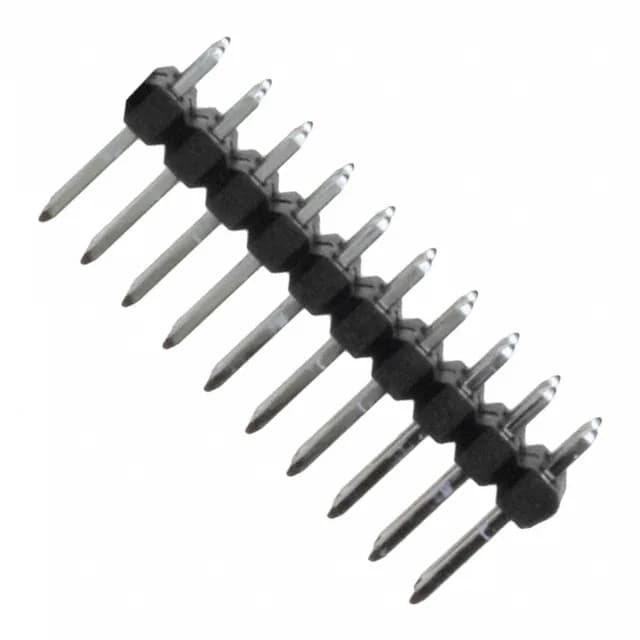

Molex 0010897201 C-Grid 70280 Header 20 Pos 2.54mm

MPN0010897201
Active

Molex C-Grid 70280 series unshrouded breakaway header, 20 positions, 2.54mm pitch, dual row, through-hole, tin-plated contacts, black LCP housing, UL94 V-0.

$2.1700Ref. price · indicative, final on quote
Molex 0010897201 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid 70280
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0010897201 key specifications
ParameterValue
SeriesC-Grid 70280
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0010897201 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.107\" (2.71mm)
Overall contact length0.437\" (11.10mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

The 0010897201: This Molex C-Grid 70280 header is a 20-position, dual-row, unshrouded breakaway header on 0.100-inch (2.54mm) pitch. It uses tin-plated square pins for the mating interface and solder tails for through-hole mounting. The housing is black LCP, glass-filled, rated UL94 V-0. Rated for board-to-board or cable connections, this header mates with C-Grid 70280 or 70287 series receptacles.

Tin Plating and Current Capacity

Tin is a cost-effective finish for applications with infrequent mating — typically rated for 25–50 cycles. While the spec table doesn't list a current rating, a 2.54mm pitch tin-plated header in this class typically carries 3 A per contact at 25°C ambient.

Sourced to order through our independent distribution network.

Frequently asked questions

Where can I buy Molex 0010897201 and get a price?

Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

What is the mating connector for Molex 0010897201?

It mates with C-Grid 70280 or 70287 series receptacles — typically a 20-position, dual-row, 2.54mm pitch socket housing with crimp terminals.

Is Molex 0010897201 RoHS compliant?

Yes, it is ROHS3 compliant.
