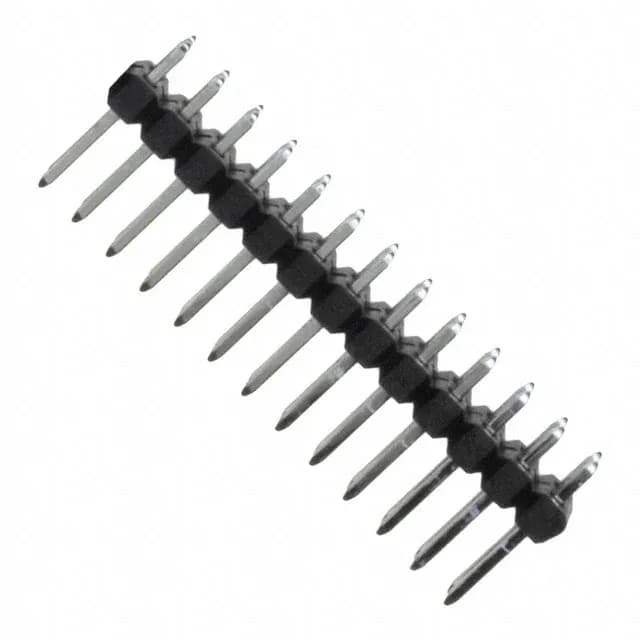

Molex C-Grid 70280 series, 0010897261, vertical unshrouded breakaway header, 26 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, tin mating finish, UL94 V-0 LCP housing, black insulation.
| Parameter | Value |
|---|---|
| Series | C-Grid 70280 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.107\" (2.71mm) |
| Overall contact length | 0.437\" (11.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The mating contact finish is tin with a thickness of 150.0 µinch (3.81 µm). The square male pin profile provides reliable contact with standard C-Grid crimp receptacles and IDC sockets.
LCP handles wave-solder temperatures without distortion and provides dimensional stability in humid environments.
