Board-to-board or cable header, 50 positions

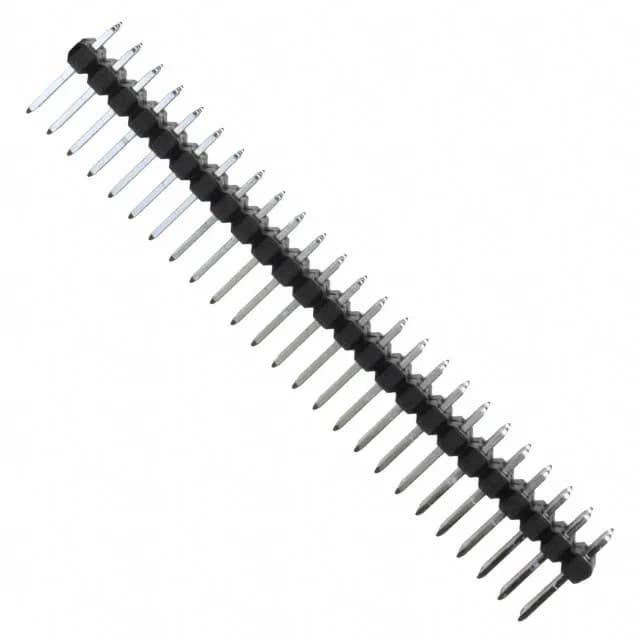

The 0010897501 is the 50-position member of Molex's C-Grid 70280 breakaway header line, designed for board-to-board or cable interconnect. It carries tin-plated mating contacts on a 0.100" (2.54 mm) pitch, mounts through-hole, and uses a push-pull fastening system. The housing is rated UL94 V-0.
Position count and row spacing
The 50 positions are arranged in two rows with a row-to-row spacing of 0.100" (2.54 mm), matching the mating pitch. All positions are loaded.
