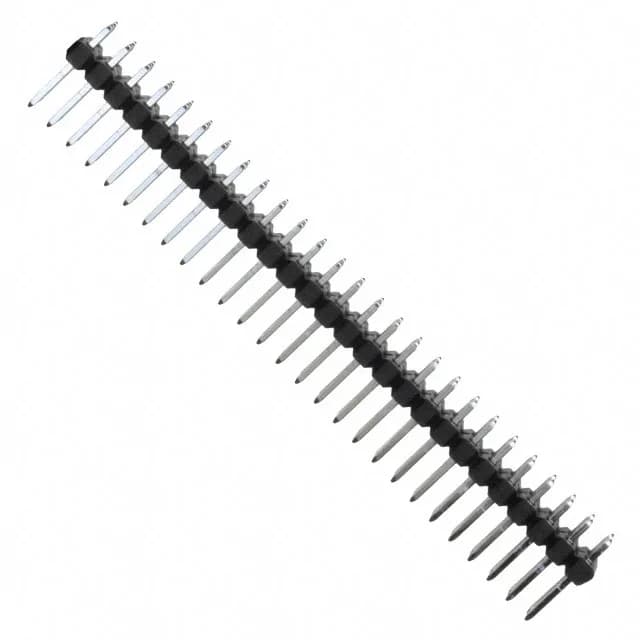

Molex C-Grid 70280 series, 0010897541, unshrouded breakaway header, 54 circuits, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, tin-plated mating and post contacts, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | C-Grid 70280 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 54 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.107\" (2.71mm) |
| Overall contact length | 0.437\" (11.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0010897541: The 0.100" row spacing keeps trace routing between rows straightforward on a two-layer board.
For a board-to-board or cable interconnect that sees occasional rework during test or field service, this finish handles the duty cycle without galling.
Black color for visual contrast against the PCB silk screen.
0.100" (2.54mm) pitch, dual-row, 54 positions total.
Confirm the receptacle's circuit count and row spacing match.
RoHS compliance is standard for this part number — the tin plating and LCP housing are RoHS-compliant materials. The spec table lists no RoHS exemption flag.
