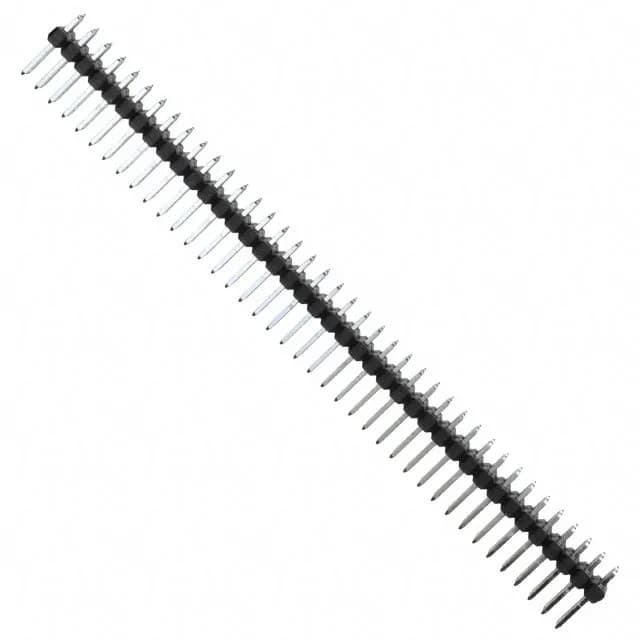

Molex C-Grid 70280 header, breakaway, order code 0010897781, 78 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | C-Grid 70280 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 78 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.107\" (2.71mm) |
| Overall contact length | 0.437\" (11.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0010897781 is the 78-circuit member of Molex's C-Grid 70280 breakaway header line, a dual-row unshrouded header with push-pull fastening.
The unshrouded header mates with standard C-Grid receptacle housings; the push-pull retention relies on the receptacle's latch, not the header.
The style is Board to Board or Cable, per the listed specification.
