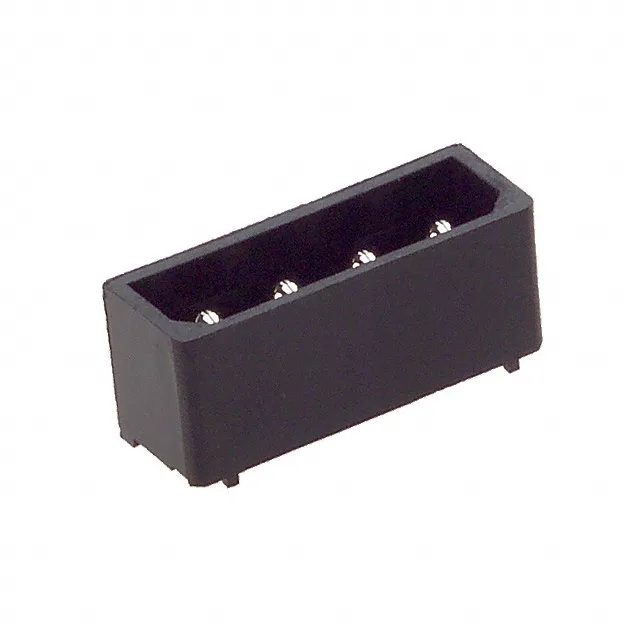

Molex 8981 series header, order code 0015244557, 4 positions, single row, 0.200" (5.08 mm) pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, friction lock.
| Parameter | Value |
|---|---|
| Series | 8981 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.083\" (2.11mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0015244557 is the 4-circuit member of the Molex 8981 shrouded header line, a board-to-wire connector with a single row of male pins on 0.200" (5.08 mm) pitch. The header uses tin-plated phosphor bronze contacts, a 4-wall shrouded housing with a friction lock, and a through-hole solder termination for PCB mounting.
The header has 4 positions on a 0.200" (5.08 mm) pitch in a single row.
