Molex Mini-Fit BMI 42404 series, 16-position dual-row header, 4.20 mm pitch, right-angle through-hole, shrouded 4-wall, tin-plated contacts, board lock, tray pack.
| Parameter | Value |
|---|---|
| Series | Mini-Fit BMI 42404 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.591\" (15.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Blind Mating, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 16 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

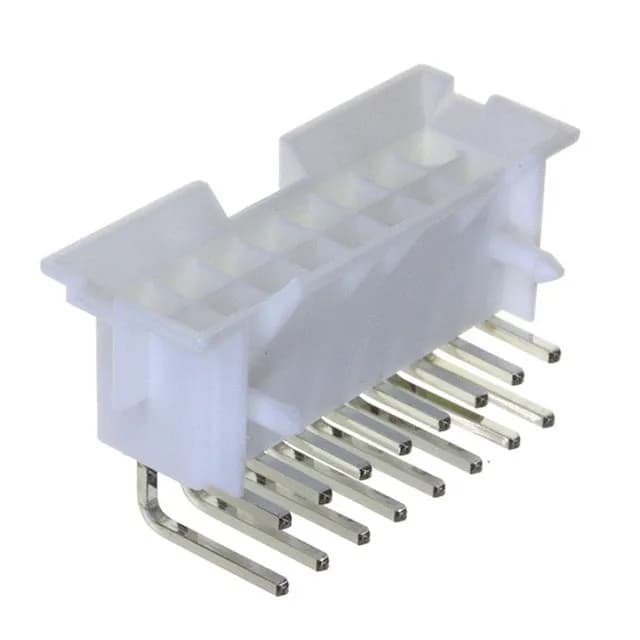

The 0015249164: 16 positions in two rows, every slot populated — no dummy pins to track.
The blind-mate feature helps alignment in tight enclosures where you can't see the connector face.
ROHS3 Compliant per the lifecycle record — no restricted substances above threshold limits.
