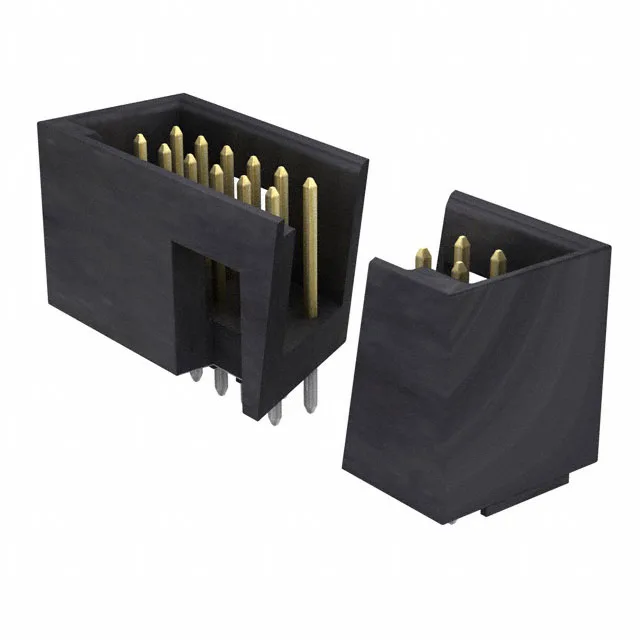

Molex C-Grid 8723 series, 0015296012, a 12-circuit shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, male pin, gold mating finish, black UL94 V-0 housing, obsolete.
| Parameter | Value |
|---|---|
| Series | C-Grid 8723 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.475\" (12.07mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0015296012: Available through independent surplus and distributor channels. Quantities are lot-specific; availability and pricing are confirmed at RFQ. This is not a stock-holding listing.
This is a 12-circuit, dual-row header from the C-Grid 8723 series.
Rated for Automotive, General Purpose, Lighting, Medical, and Telecommunications environments.
Yes, Molex lists 0015296012 as Obsolete. No direct replacement has been announced. Sourcing is through independent channels — confirm availability at quote time.
Sourced per RFQ through independent distribution and surplus channels.
