Molex 0015381024 — Pin Headers, Sockets & Housings

Molex C-Grid 7859 0015381024 Shunt, 2-Pos, 5A, Tin

MPN0015381024
Active

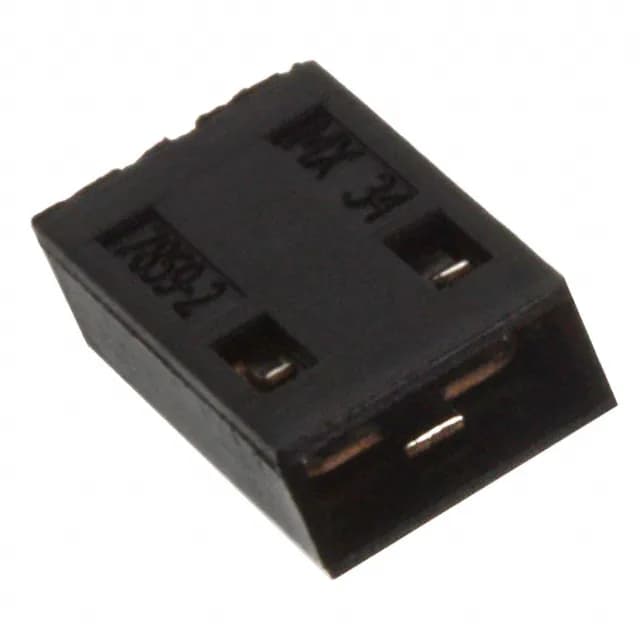

Molex C-Grid 7859 0015381024, Open Top Shunt, 2 (1 x 2) positions, 0.100" (2.54mm) pitch, Female Sockets, Tin contact finish, 5A, Black, Bulk.

$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC-Grid 7859
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0015381024 specifications
ParameterValue
TypeOpen Top
SeriesC-Grid 7859
Current rating5A
ColorBlack
Height0.347\" (8.81mm)
Housing materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
GenderFemale Sockets
PackageBulk
Contact finishTin
Contact finish thickness150.0µin (3.81µm)
Number of positions or pins2 (1 x 2)

Product details

The Molex 0015381024 is a 2-position open-top shunt from the C-Grid 7859 series, designed to short adjacent pins on a 0.100" (2.54mm) pitch header. It carries female sockets with a heavy 150.0µin (3.81µm) tin contact finish, rated 5A per circuit. This is the part you reach for when you need to configure a programming jumper, set an address line, or temporarily bridge two pins on a prototype board — the open top lets you probe the connection with a meter lead without pulling the shunt.

The 150 µ" tin finish is thick enough to handle repeated insertion and removal cycles on a test fixture or configuration header without wearing through to the base metal.

Frequently asked questions

Is 0015381024 RoHS compliant?

Yes, the 0015381024 is ROHS3 Compliant per the manufacturer.

What is the current rating of molex 0015381024?

The 0015381024 is rated 5A per contact with tin-plated female sockets.
