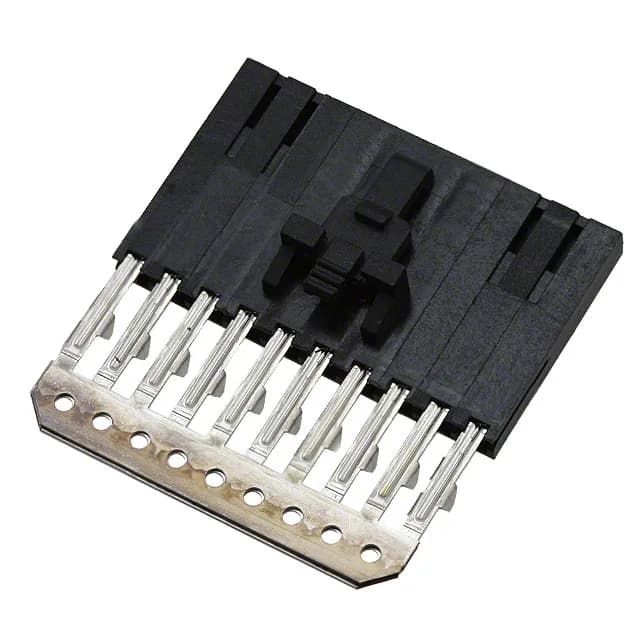

Molex 0015388100, SL 70430, 10-Position FFC Receptacle
Molex SL 70430 series, 10-position IDC flat flex receptacle, 0.100" (2.54mm) pitch, tin-plated phosphor bronze contacts, latch lock, free-hanging in-line mount, straight cable entry, accepts CIC/FFC 0.13–0.28 mm thick, rated 250V, operating -40 to 105°C, UL94 V-0 glass-filled polyester housing.
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70430 |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight |
| Flat flex type | CIC, FFC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | IDC |
| Manufacturer | Molex |
| Mating cycles | 25 |
| Contact finish | Tin |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.13 ~ 0.28mm, 0.30mm |
| Positions | 10 |
| Contact finish thickness | 150.0µin (3.81µm) |
Frequently asked questions
Who supplies 0015388100 and how is it quoted for volume purchases?
Sourced to order against your BOM quantity through independent distribution — availability and current pricing are confirmed at quote time. The 0015388100 is the exact Molex SL 70430 line item; confirm the 10-position count and flex thickness window against your cable assembly before committing the BOM line.
What compliance documentation does this brand provide for 0015388100?
The housing carries a UL94 V-0 flammability rating, which is the primary material-certification flag on this listing. Full RoHS/REACH or UL product safety documentation can be requested from Molex directly or confirmed through your distributor at quote time.
