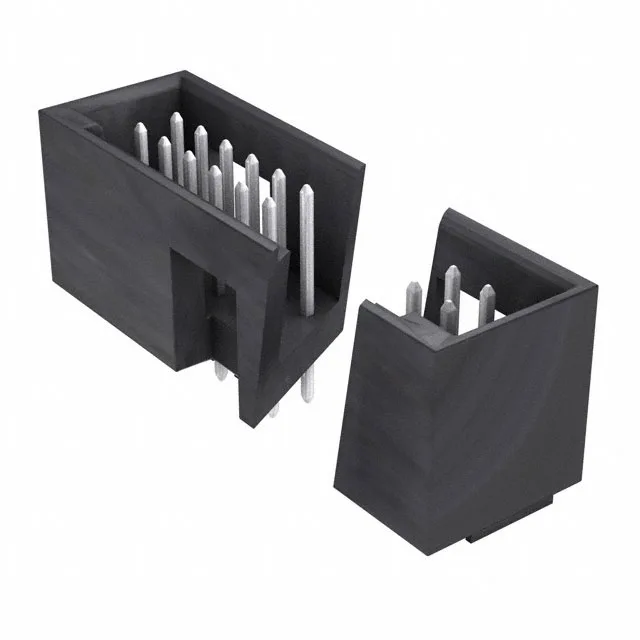

Molex C-Grid 8723 header, order code 0015426010, 10 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through hole, solder termination, shrouded - 4 wall, detent lock.
| Parameter | Value |
|---|---|
| Series | C-Grid 8723 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.475\" (12.07mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0015426010: Tin-plated mating contacts, a UL94 V-0 glass-filled polyester housing, and a detent lock secure the mated pair against vibration.
Molex has classified the 0015426010 as Obsolete. Availability is limited to surplus and distributor inventory. Confirm quantity and lead time at RFQ.
The C-Grid 8723 series is listed for Automotive, General Purpose, Lighting, Medical, and Telecommunications applications.
Submit an RFQ for the 0015426010. Availability is confirmed against current surplus and distributor inventory at the time of the request.
