Molex 0015474030 — FFC / FPC & Ribbon Connectors

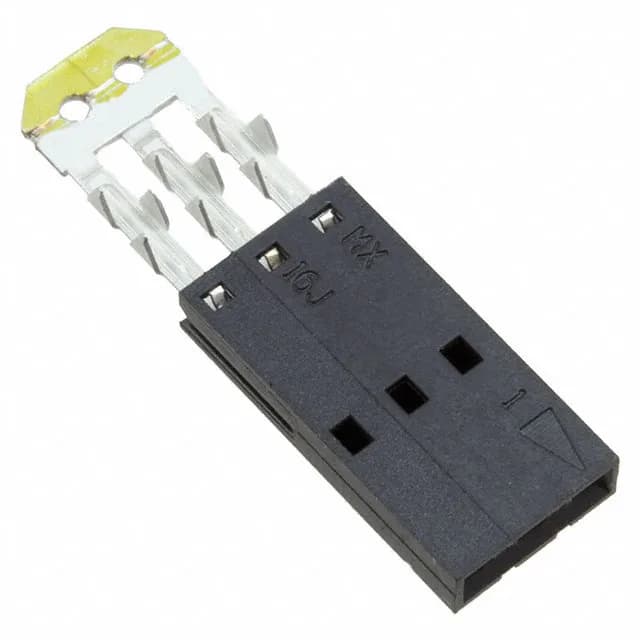

Molex 0015474030 SL 70430 FFC Receptacle, 3 Pos, 0.100"

MPN0015474030
Active

Molex SL 70430 FFC receptacle, order code 0015474030, 3 positions, 0.100" (2.54mm) pitch, 250V, gold-plated contacts, IDC termination, free-hanging, straight cable entry.

$0.6823Ref. price · indicative, final on quote
Molex 0015474030 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0015474030 key specifications
ParameterValue
SeriesSL 70430
MountingFree Hanging (In-Line)
Cable end typeStraight
Flat flex typeCIC, FFC
Connector (Contact type)Receptacle
Voltage rating250V
Operating temperature-40°C ~ 105°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)

All specifications

0015474030 additional specifications
ParameterValue
PackageTube
TerminationIDC
Mating cycles50
Contact finishGold
FFC, FCB thickness0.13 ~ 0.28mm, 0.30mm
Positions3
Contact finish thickness15.0µin (0.38µm)

Product details

3-position FFC receptacle in the SL 70430 series

The 0015474030 is the 3-circuit member of Molex's SL 70430 FFC receptacle line, accepting CIC and FFC flat flex cable types. Contacts are gold-plated phosphor bronze rated 250V, with a 0.100" (2.54mm) pitch and IDC termination for free-hanging, straight cable entry.

Contact finish and mating cycles

Gold plating at 15.0µin (0.38µm) supports 50 mating cycles — the plating grade, not the contact base, sets the reconnect duty for this 3-position receptacle.

Frequently asked questions

What is the pitch on this FFC receptacle?

The pitch is 0.100" (2.54mm).
