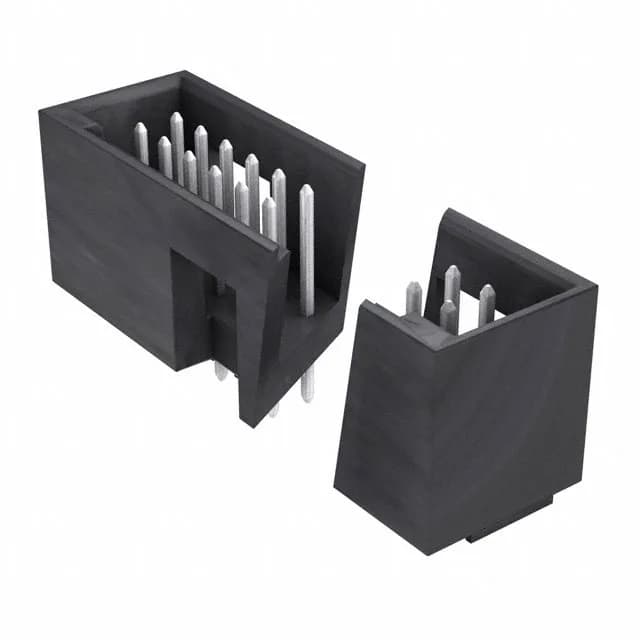

0015800361 — Molex C-Grid 70567 Header 36-Position
MPN0015800361
Active
Molex C-Grid 70567 dual-row header, 36 positions, 0.100" pitch (2.54 mm), tin-plated copper alloy contacts, through-hole solder termination, four-wall shrouded, detent lock, 0.475" insulation height, UL94 V-0 LCP housing.
$4.9336Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 70567 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.475\" (12.07mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.570\" (14.48mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Frequently asked questions
Where can I buy 0015800361 and how do I get a price?
The 0015800361 is sourced and quoted to order against the BOM quantity through independent distribution; availability and current pricing are confirmed at quote time via an RFQ.
What is 0015800361's listed style on this component line?
The 0015800361 is listed as Style Board to Cable/Wire — a board-to-cable/wire header that mates with the matching wire-side receptacle in the C-Grid 70567 series.
What is 0015800361's listed series on this component line?
The 0015800361 belongs to the C-Grid 70567 series — Molex's dual-row 0.100" pitch header family with square pin contacts, available across a range of position counts and termination styles.
