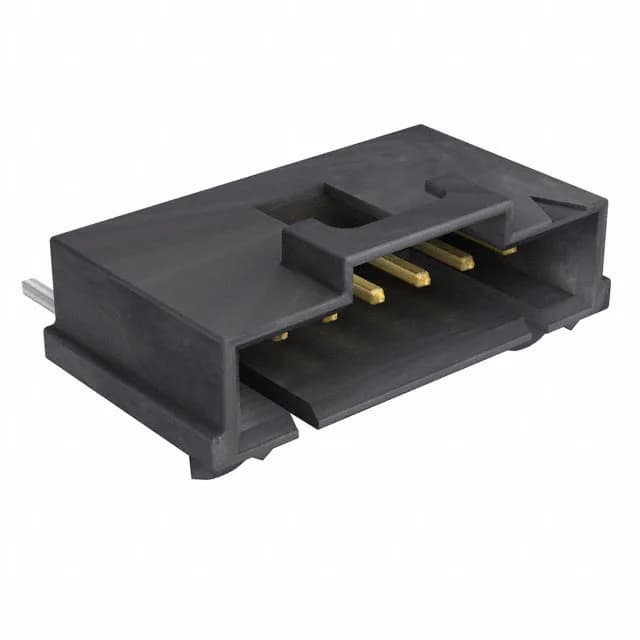

Molex 0015912075 SL 70634 Header – 7 Pos, 2.54 mm Pitch

MPN0015912075
Active

Molex SL 70634 shrouded header, 7 positions, 0.100" (2.54 mm) pitch, SMT right-angle, gold-plated male pins, latch holder, UL94 V-0 black polyester housing.

$5.7200Ref. price · indicative, final on quote
Molex 0015912075 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 70634
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0015912075 key specifications
ParameterValue
SeriesSL 70634
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube

All specifications

0015912075 additional specifications
ParameterValue
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions7
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

7-Position, 2.54 mm Pitch – Shrouded Header with Latch

The 0015912075: The 4-wall shroud and latch holder mean the mating receptacle locks positively — no accidental unmate under vibration in automotive or industrial enclosures.

SMT Right-Angle – Board-Edge Routing and Reflow Fit

The board guide aligns the header during placement, reducing tombstoning risk during reflow. The glass-filled polyester housing (UL94 V-0) withstands lead-free soldering temperatures without deformation.

ROHS3 compliant and supplied in tube packaging. The base product number 001591 covers the series variant; verify the 7-position count and right-angle orientation match your layout.

Frequently asked questions

Does the 0015912075 mate with a specific SL series housing?

Yes — this is a shrouded header with a latch holder, designed to mate with a matching SL series receptacle housing (typically the 70066 or 70400 series, depending on circuit count and keying). The 4-wall shroud and latch ensure a positive lock. Confirm the mating housing part number against your assembly drawing before committing.
