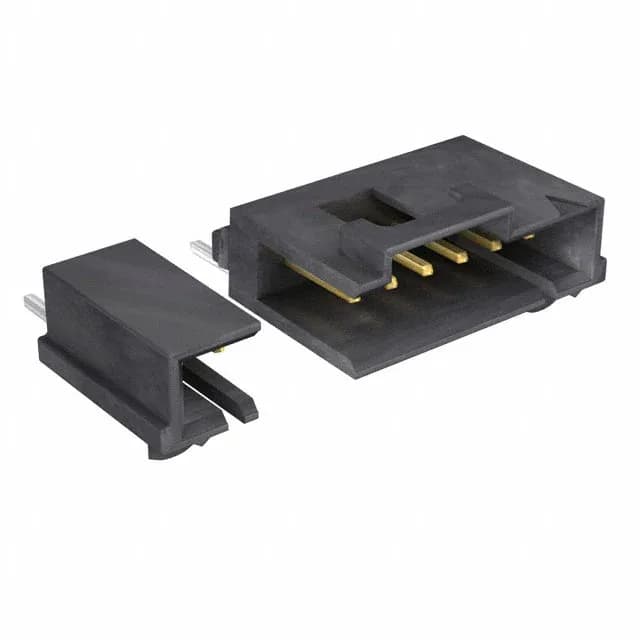

Molex SL 70634 header, 0015912115, 11 circuits, 0.100" (2.54 mm) pitch, surface-mount right-angle, shrouded 4-wall, gold-plated male pins, latch holder, tube pack.
| Parameter | Value |
|---|---|
| Series | SL 70634 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0015912115: All 11 positions are loaded, so the BOM circuit count matches the pin count exactly.
A latch holder fastening system locks the mating halves together — it resists vibration and prevents the connector from backing out in equipment with motors or conveyors.
The pitch is 0.100" (2.54 mm) — the standard spacing for this SL 70634 series header.
