Molex 0015916029

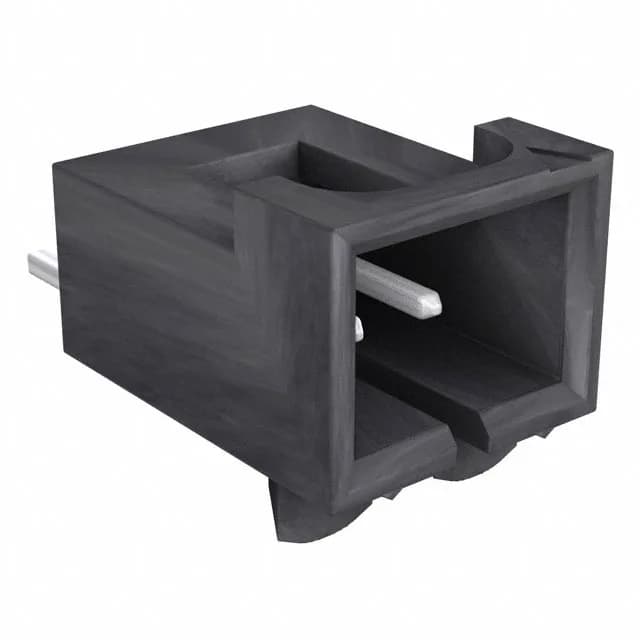

Molex 0015916029 SL 70634 Header, 2-Pos, 2.54mm Pitch

MPN 0015916029
Active

Molex SL 70634 series, 2-position shrouded header, 0.100" (2.54mm) pitch, surface mount right-angle, tin-plated male pins, latch holder, UL94 V-0, Tape & Reel.

$3.4000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0015916029 key specifications
ParameterValue
SeriesSL 70634
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesBoard Guide

All specifications

0015916029 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions2
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating74.8µin (1.90µm)

Product details

2.54mm Pitch, 2-Position Shrouded Header — Board-to-Wire Fit

The 0015916029: The board guide helps align the part during pick-and-place, reducing tombstoning risk.

Tin-Plated Contacts and Latch Holder for Vibration Duty

Tin is the standard choice for moderate-cycle, cost-sensitive applications — expect a few hundred mating cycles before the plating wears through.

Lifecycle status is Active — no end-of-life notice, no last-time-buy deadline. The part is orderable against a BOM line without a watchlist flag. No stock-holding claim — quoted to order per RFQ.
