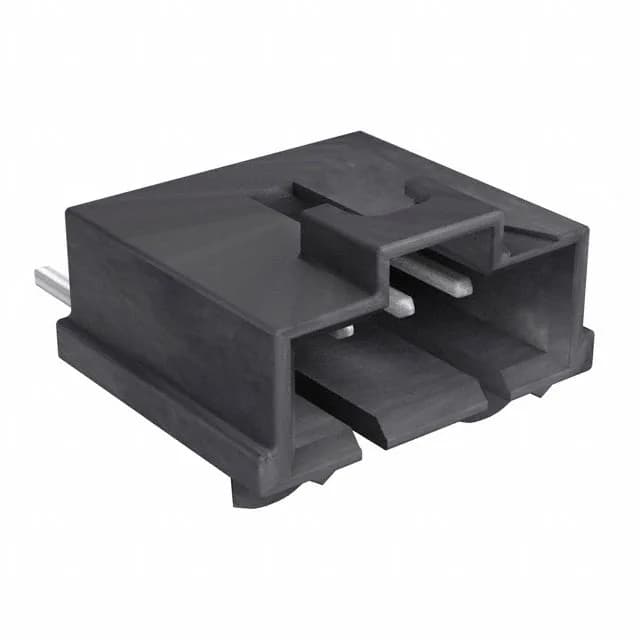

Molex SL 70634 header, order code 0015916049, 4 positions, single row, 0.100" (2.54mm) pitch, tin-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SL 70634 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 74.8µin (1.90µm) |
The 0015916049 is the 4-circuit member of Molex's SL 70634 shrouded header line for board-to-wire applications.
The 0015916049 is a single-row header — the 4 positions fit a 4-circuit cable assembly. The pitch and tin plating are shared across the SL 70634 series; match the position count to the circuit count of the mating receptacle.
RoHS and REACH documentation is provided by Molex for the SL 70634 series.
