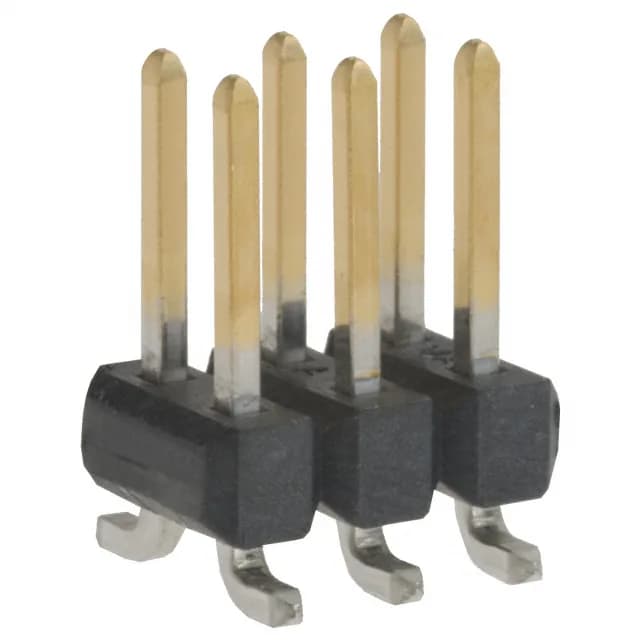

Molex 0015916062
MPN0015916062
Active
$2.6100Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 71308 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Pick and Place |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
