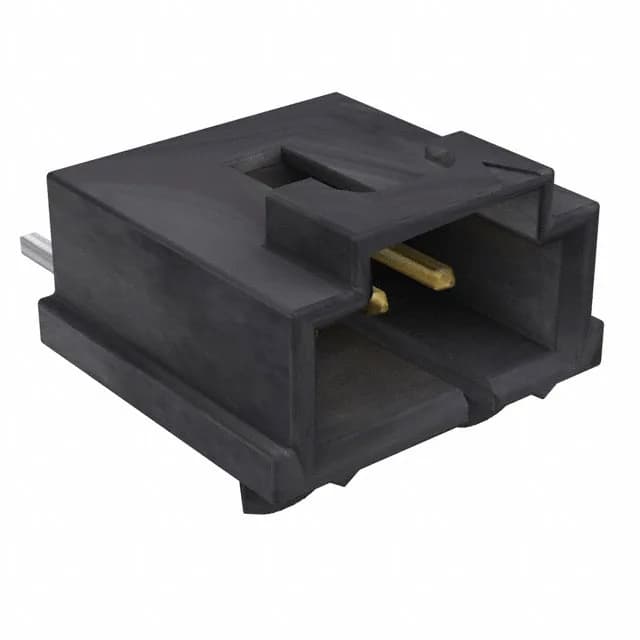

Molex 0015917030

Molex 0015917030

MPN 0015917030
Active
$5.0400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0015917030 key specifications
ParameterValue
SeriesSL 70634
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesBoard Guide

All specifications

0015917030 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating15.0µin (0.38µm)
MPN
0015917030
