Molex 0015921430 — Centronics Connectors

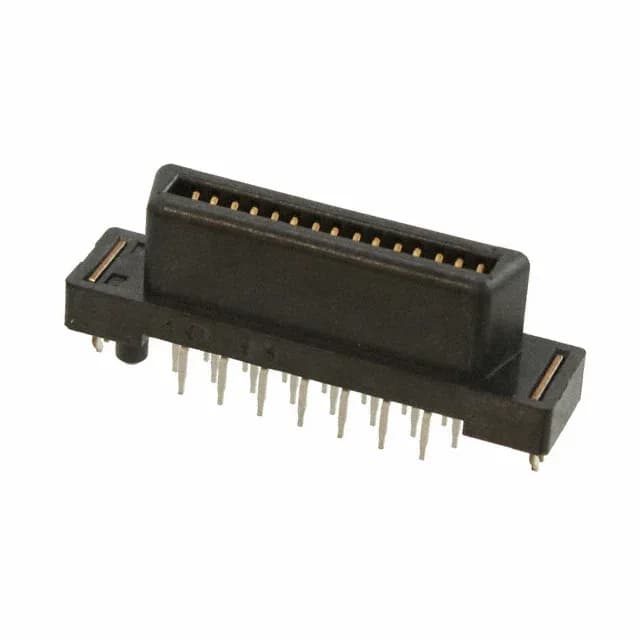

Molex 0015921430 EBBI 71660 Receptacle, 30 Pos, 30.0µin Gold

MPN0015921430
Active

Molex EBBI 71660 receptacle, 30 positions, 2 rows, through-hole solder, gold-plated contacts, 30.0µin gold thickness, board guide and board lock features.

$5.8800Ref. price · indicative, final on quote
Molex 0015921430 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEBBI 71660
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0015921430 specifications
ParameterValue
SeriesEBBI 71660
MountingThrough Hole
Connector typeOuter Shroud Contacts
PackageTray
FeaturesBoard Guide, Board Lock
TerminationSolder
Contact finishGold
Rows2
Positions30
Contact finish thickness30.0µin (0.76µm)

Product details

30-Position EBBI 71660 Receptacle — Through-Hole with Board Guide and Lock

The Molex 0015921430 is a 30-position, 2-row receptacle from the EBBI 71660 series, terminated through-hole with solder.

The gold also resists oxidation in humid or mildly corrosive environments, keeping contact resistance stable over the equipment life.

Board Guide and Board Lock — Assembly and Retention

The board guide funnels the mating plug into alignment before the contacts engage, reducing the risk of stubbing or bending pins during blind-mate assembly. For a through-hole part, the lock is the primary retention mechanism against vibration.

Frequently asked questions

Is Molex 0015921430 RoHS compliant?

Yes, the 0015921430 is rated ROHS3 Compliant, meaning it meets the EU RoHS directive with no exemptions for the three restricted phthalates.

What connector mates with Molex 0015921430?

The 0015921430 is a receptacle with outer shroud contacts, so it mates with a matching EBBI 71660 plug header that has the same 30-position, 2-row layout. The exact mating half order code is not listed, but the series designation confirms compatibility within the EBBI 71660 family.

Are there alternatives to Molex 0015921430?

No official cross-reference or direct alternative is recorded for this part. The only listed series is EBBI 71660. For a pin-compatible alternative, you would need to compare the pitch, row count, and mounting style against other 30-position, 2-row receptacles with outer shroud contacts.
