Molex 0019092157 — Connector Housings

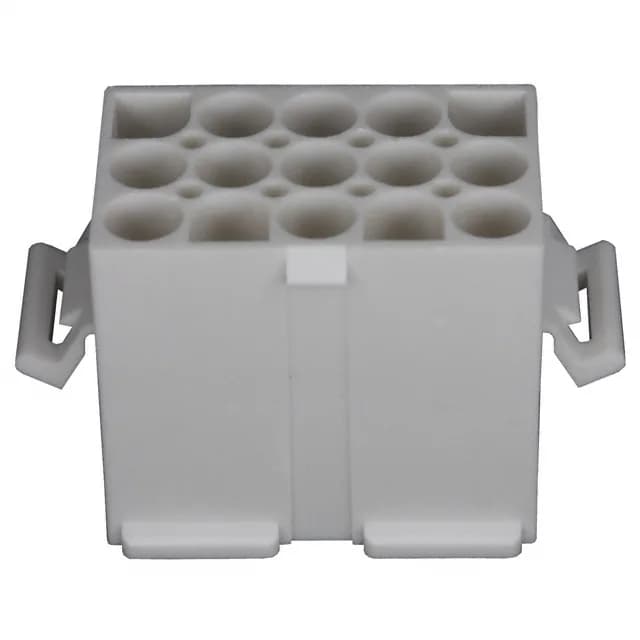

Molex 3191 0019092157 15-Position Plug Housing, 6.71mm

MPN0019092157
Active

Molex 3191 series, plug housing, 15 positions, 3 rows, 0.264" (6.71 mm) pitch, panel mount snap-in, locking ramp, crimp termination, natural PA66, contacts not included.

$1.9600Ref. price · indicative, final on quote
Molex 0019092157 datasheet (PDF)
RoHSROHS3 Compliant
Series3191
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0019092157 specifications
ParameterValue
Series3191
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.264\" (6.71mm)
PackageBulk
Row spacing0.264\" (6.71mm)
Rows3
Contact terminationCrimp
Positions15

Product details

Housing Specs and Harness Fit

The Molex 3191 series 0019092157 is a 15-position plug housing built for wire-to-wire or wire-to-panel harness applications.

Contacts are not included — this is a bare housing. You'll source the matching crimp terminals (male or female, depending on your circuit direction) and insert them after crimping.

Mounting and Retention

Panel mount with snap-in clips — no screws, no brackets. For field service, a small flat-blade screwdriver depresses the ramp to release the pair.

Frequently asked questions

Does the Molex 0019092157 housing include contacts?

No — contacts are not included. You need to order the matching crimp terminals separately (male or female, depending on your circuit direction).

What is the mating header for 0019092157?

The housing mates with a Molex 3191 series header of the same pitch (6.71 mm) and position count. The exact header part number depends on whether you need a male or female pin configuration and mounting style.
