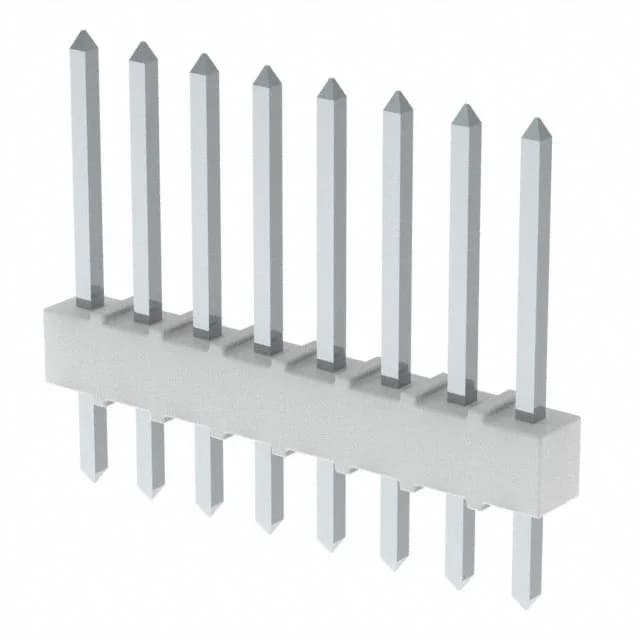

Molex KK254, 4030 series header, order code 0022032087, 8 positions, single row, 0.100" (2.54 mm) pitch, tin-plated mating and post contacts, through-hole, solder termination, unshrouded.
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.630\" (16.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.365\" (9.27mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0022032087: The 0.100" pitch is standard for prototyping and low-density board layouts. Tin-plated mating contacts suit moderate mating-cycle duty; the UL94 V-0 nylon housing supports use in equipment requiring a flame rating.
The housing material is UL94 V-0 rated polyamide (nylon). RoHS and REACH compliance documentation is available from Molex upon request.
