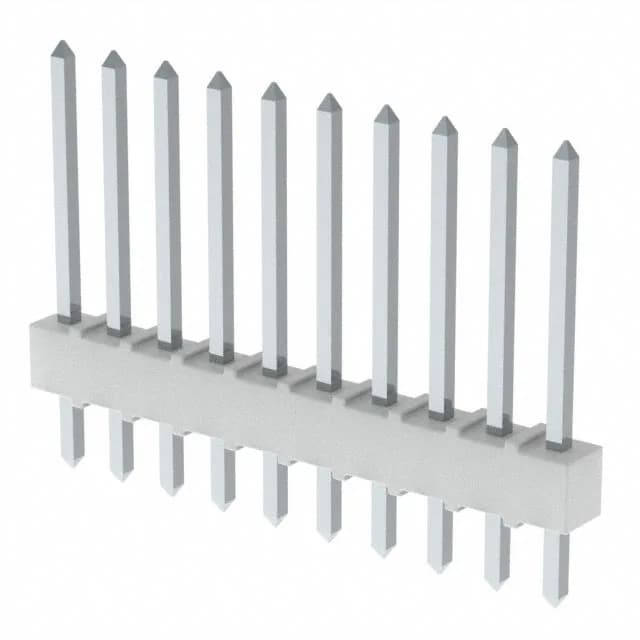

Molex KK254, 4030 series unshrouded header, 10 positions, 0.100" (2.54 mm) pitch, through-hole, tin-plated contacts, UL94 V-0, bulk pack.
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.690\" (17.53mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.435\" (11.05mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
In a production harness or a field-replaceable module, the tin interface wears with each mate — budget for 25–50 mating cycles before contact resistance starts to drift.
Mates with any KK254-series crimp receptacle housing (e.g., Molex 50-57-9408 for 10 positions) that accepts 22–30 AWG wire. The unshrouded pins also accept standard 0.025" square-post IDC connectors.
This unshrouded header mates with a KK254 crimp receptacle housing from the same series (4030). The push-pull retention is suitable for applications without continuous vibration.
Yes, it is ROHS3 Compliant.
