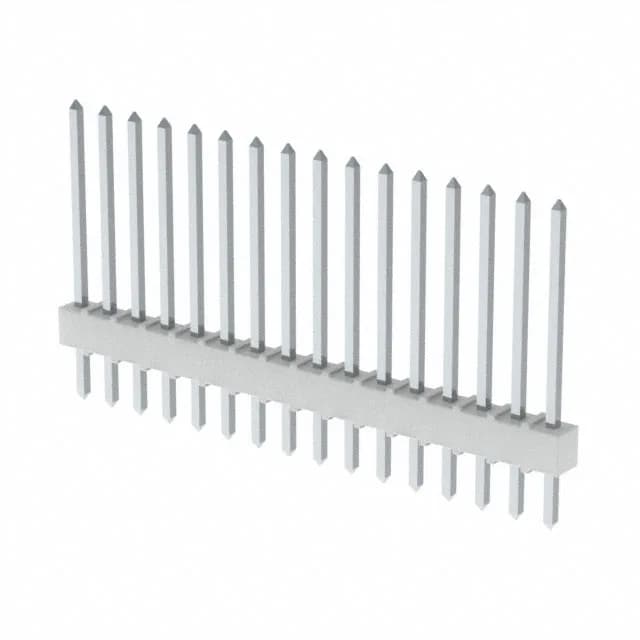

0022032166 16-Position Header, KK254, 0.100" Pitch
MPN0022032166
Active
Molex KK254, 4030 header, 16 positions, 1 row, 0.100" (2.54 mm) pitch, square male pin, unshrouded, through-hole push-pull, tin-plated mating and post contacts, PA nylon insulation, UL94 V-0, bulk.
$0.6532Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.840\" (21.34mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.560\" (14.22mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Frequently asked questions
Who supplies 0022032166 and how is it quoted for volume purchases?
Sourced through independent distribution, quoted to order against the BOM quantity. Availability and current pricing are confirmed at quote time — no stock-holding claim is made on this part.
What is 0022032166's listed series?
The part is listed under series KK254, 4030, with base product number 002203.
What is 0022032166's listed style?
The connector is classified as Board to Board or Cable style — it is a through-hole push-pull header designed for board-to-board stacking or cable-terminated interconnect.
