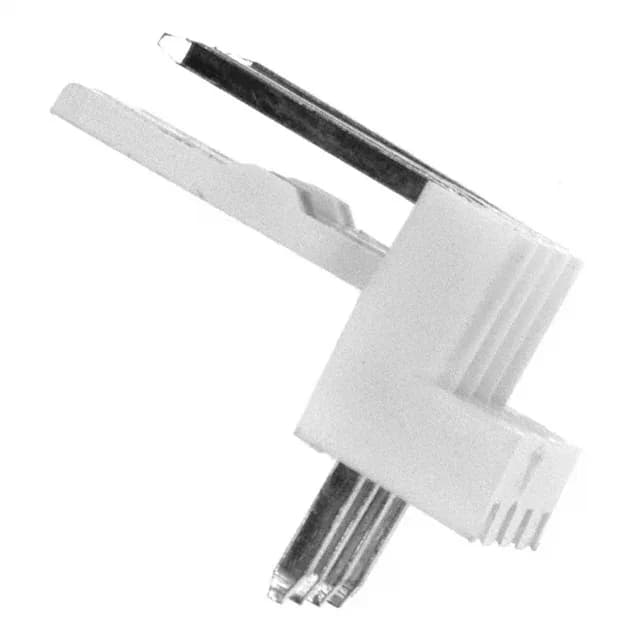

Molex KK250 series, 5046 family, board-to-cable/wire header, 4 positions, 0.098" (2.50mm) pitch, through hole right-angle, male pin, tin-plated contacts, friction lock, UL94 V-0, ROHS3 Compliant.
| Parameter | Value |
|---|---|
| Series | KK250, 5046 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
The 0022051042: Four positions loaded all — no empty slots to work around in the harness layout.
Mates with the corresponding KK250 series crimp receptacle housings — confirm the circuit count and keying match the harness side before committing the BOM.
The 0022051042 is sourced to order against your BOM quantity.
The 0022051042 mates with a KK250 series crimp receptacle housing (4-position, 2.50mm pitch) with a matching friction-lock feature. Confirm the circuit count and keying on the harness side before ordering.
