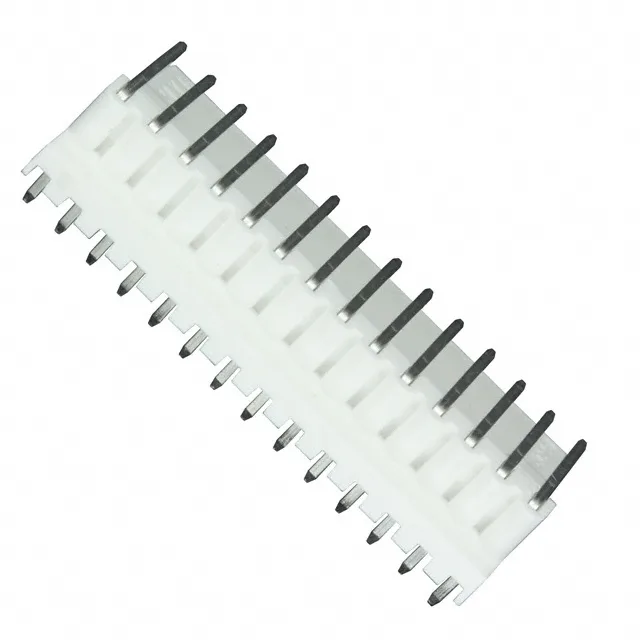

Molex 0022051142

Molex 0022051142

MPN 0022051142
Active
$3.1997 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0022051142 key specifications
ParameterValue
SeriesKK250, 5046
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorNatural
Insulation height0.248\" (6.30mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

0022051142 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions14
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - mating200.0µin (5.08µm)
MPN
0022051142
