Right-angle through-hole, single-row layout

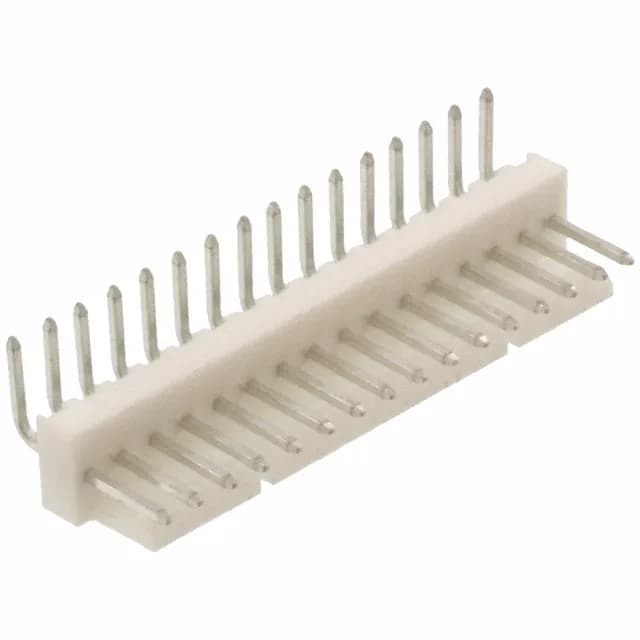

The 0022053161 is the 16-position member of the Molex KK254, 7478 header series, mounted through-hole right-angle with a single row of square male pins.
Molex 0022053161 KK254 Header, 16 Pos, 0.100" Pitch
MPN0022053161
Active
Molex KK254, 7478 header, order code 0022053161, 16 positions, single row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole right-angle, solder termination, friction lock.
$2.4300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 7478 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.141\" (3.58mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
