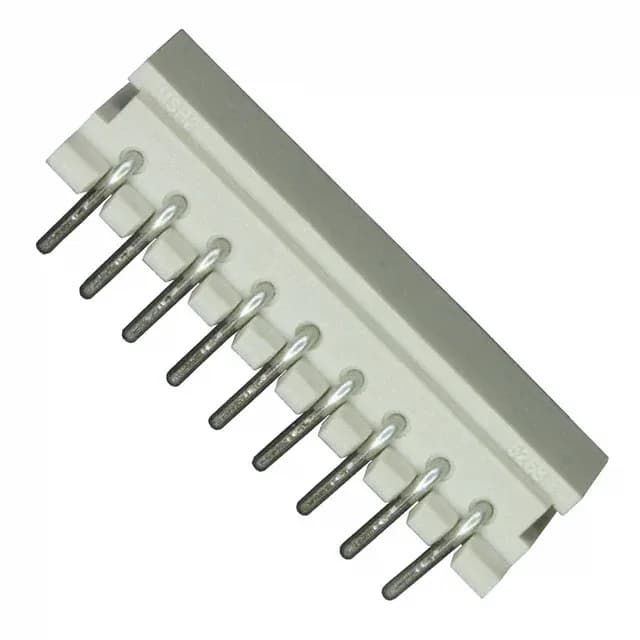

Molex Mini-SPOX 5268 header, 0022057095, 9 circuits, 2.50mm pitch, right-angle through-hole, shrouded 4-wall, detent lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-SPOX 5268 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 160.0µin (4.06µm) |
| Contact finish thickness - mating | 160.0µin (4.06µm) |
Molex 0022057095 is a 9-position, single-row header from the Mini-SPOX 5268 series.
The right-angle orientation and detent lock suit it for wire-to-board interconnects in dash panels, sensor modules, and control units where the cable exits the board edge.
Yes, the Mini-SPOX 5268 series is listed for Automotive applications. The detent lock and shrouded 4-wall housing provide vibration resistance suitable for interior and under-hood environments where the connector is not directly exposed to splash or washdown.
